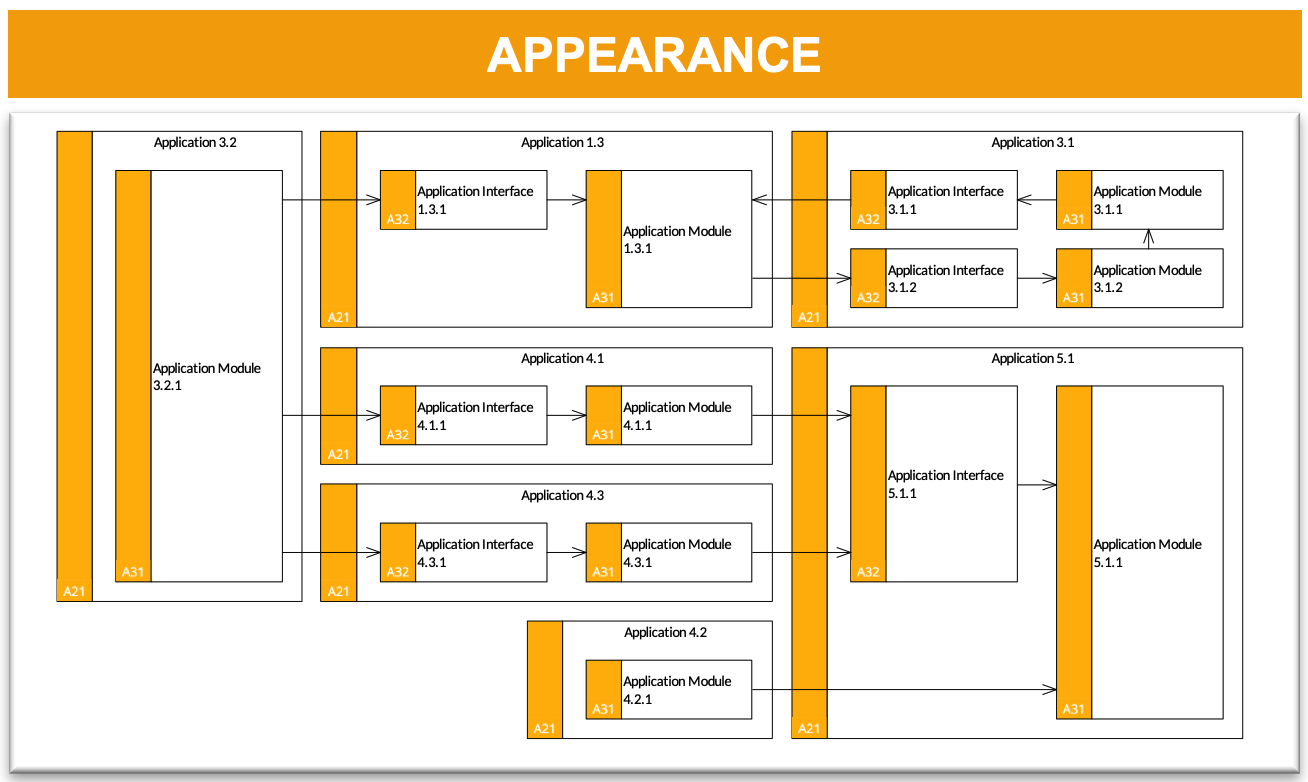

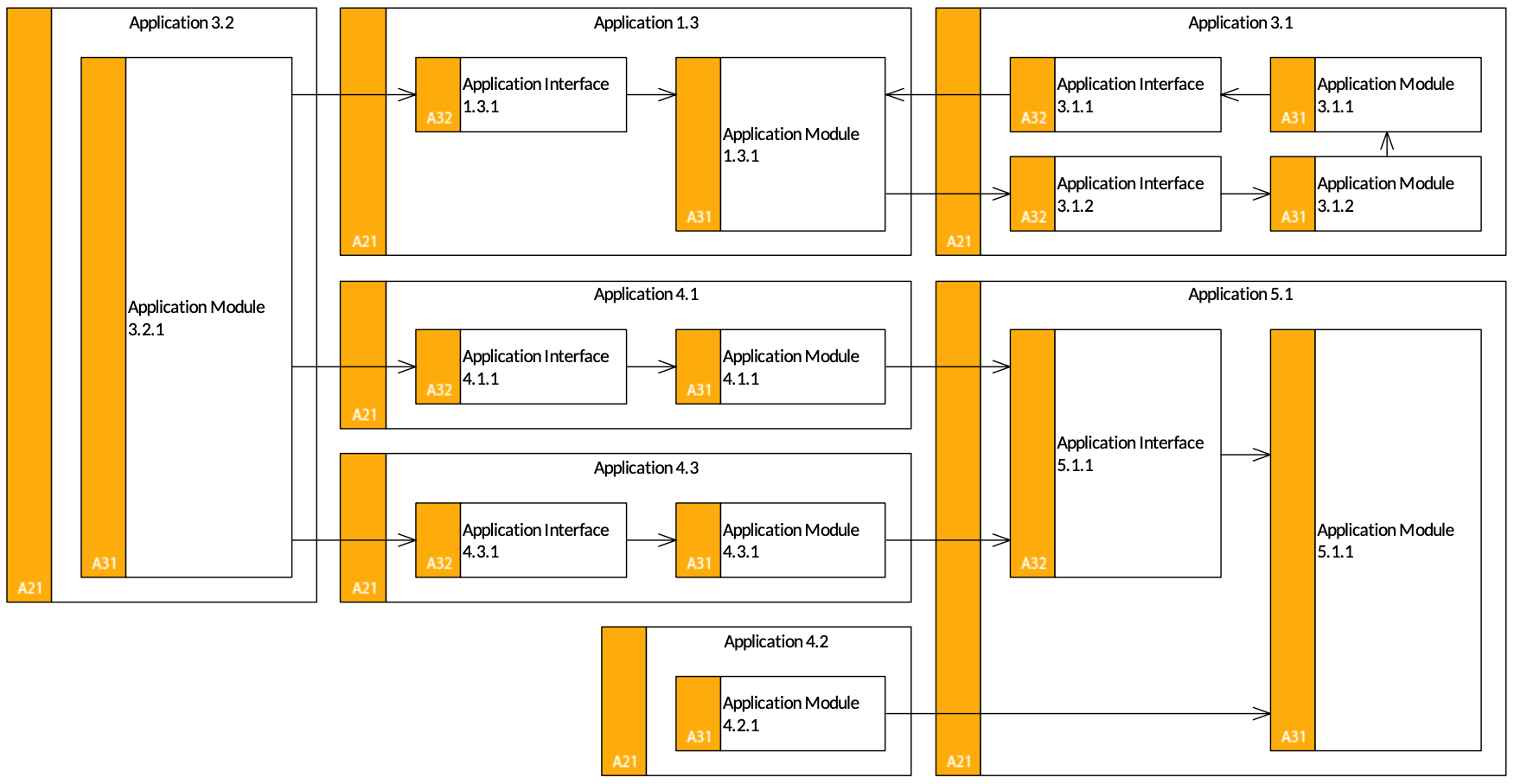

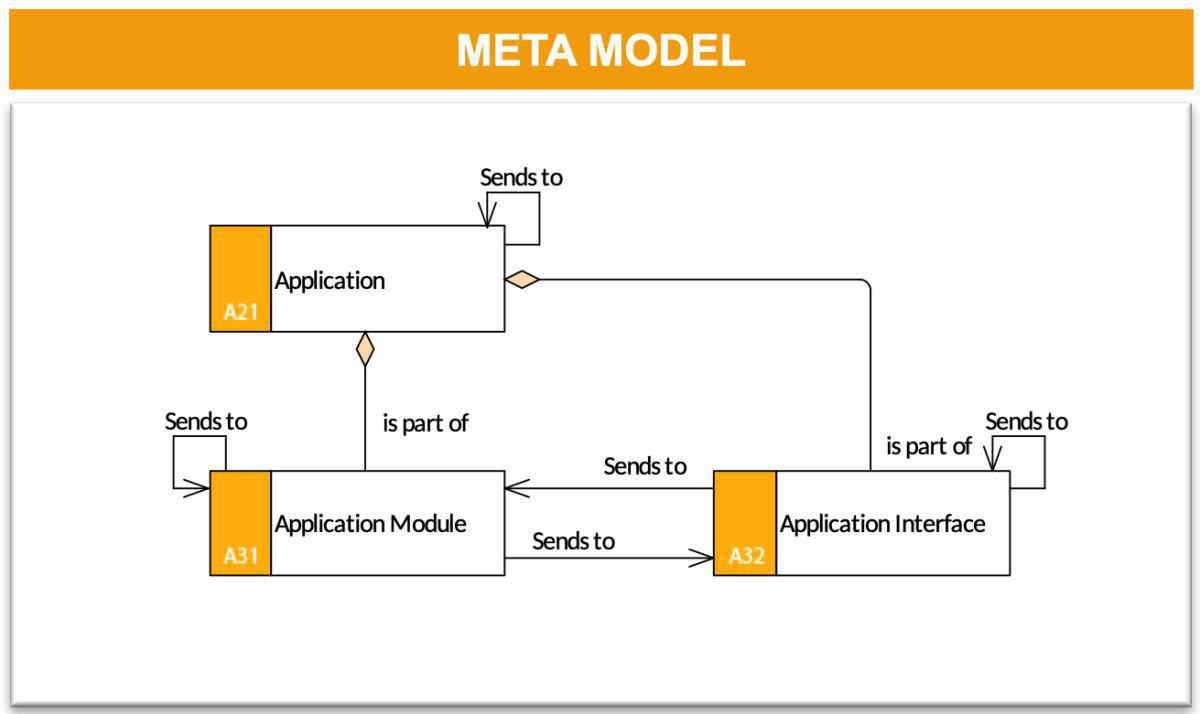

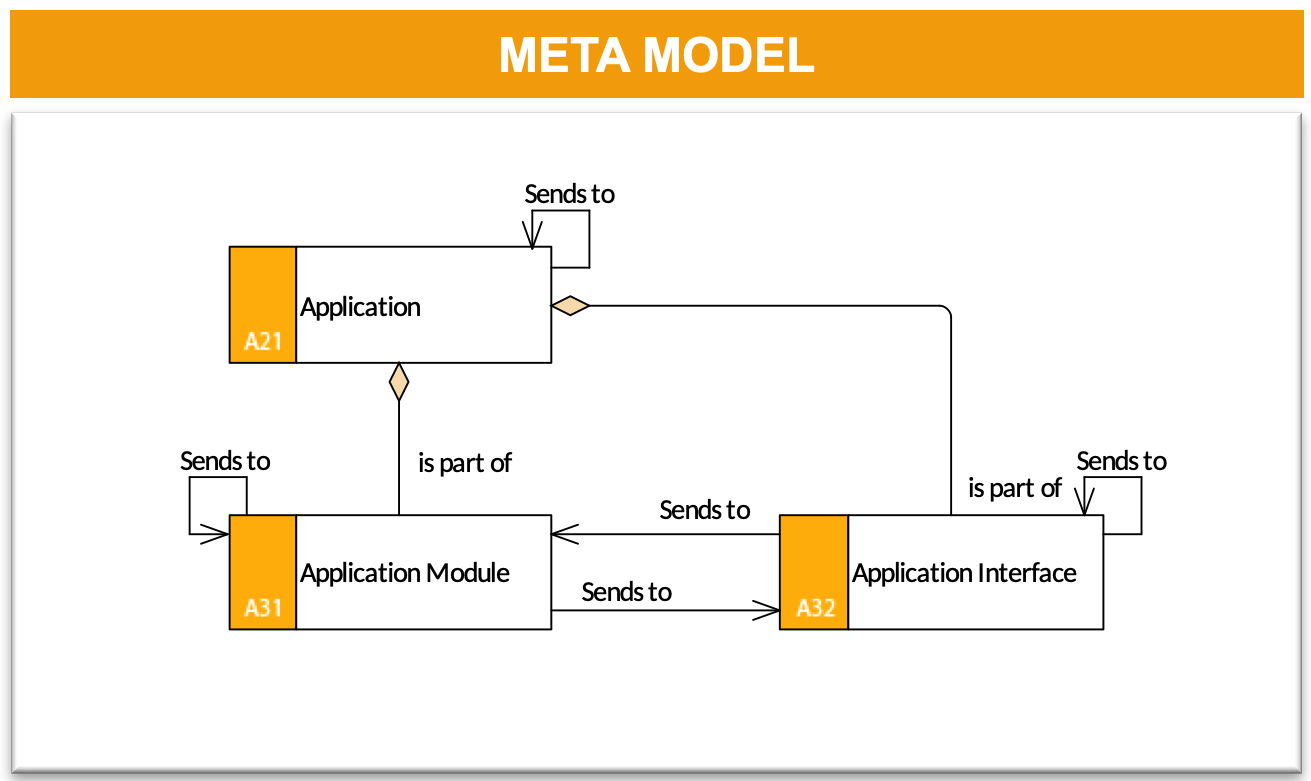

A visual description of how the application modules are integrated with each other, both in a certain application and between applications. The description illustrates both the application modules and eventual interfaces.
Purpose
Th ID view consists of an overview of integrations of modules. This view is used to create understanding about the flows as well as to navigate other models.
Way of Working
- Choose a few logically related applications, for instance from a flow or a process group.
- Identify the application modules and application interfaces that are included in the flow.
- Place the application modules and application interfaces in a way that makes it easy to follow the flow at the same time that it is possible to group them based on applications.
- Drag relations from the data that is sent.
- Place applications as background.
