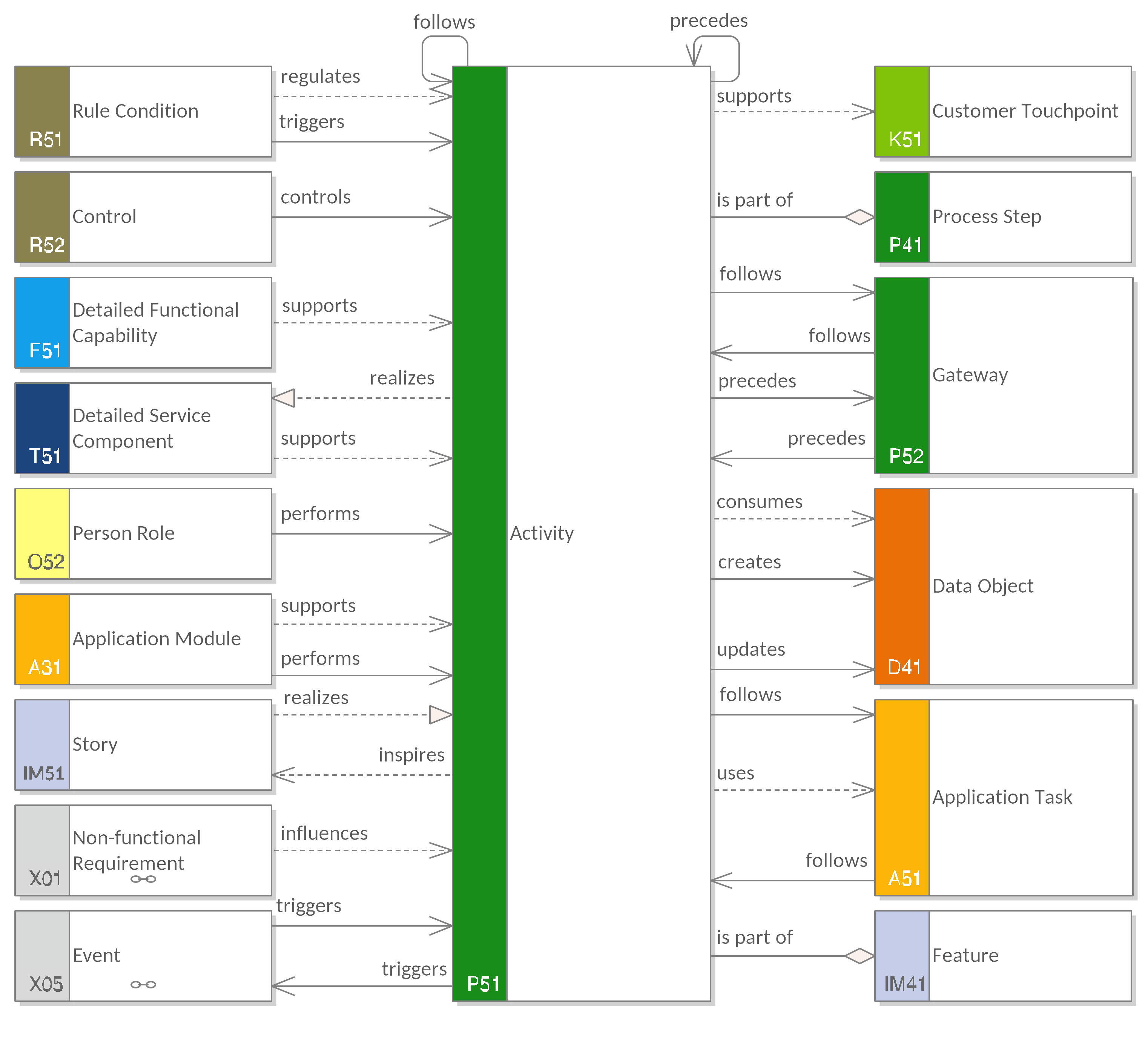

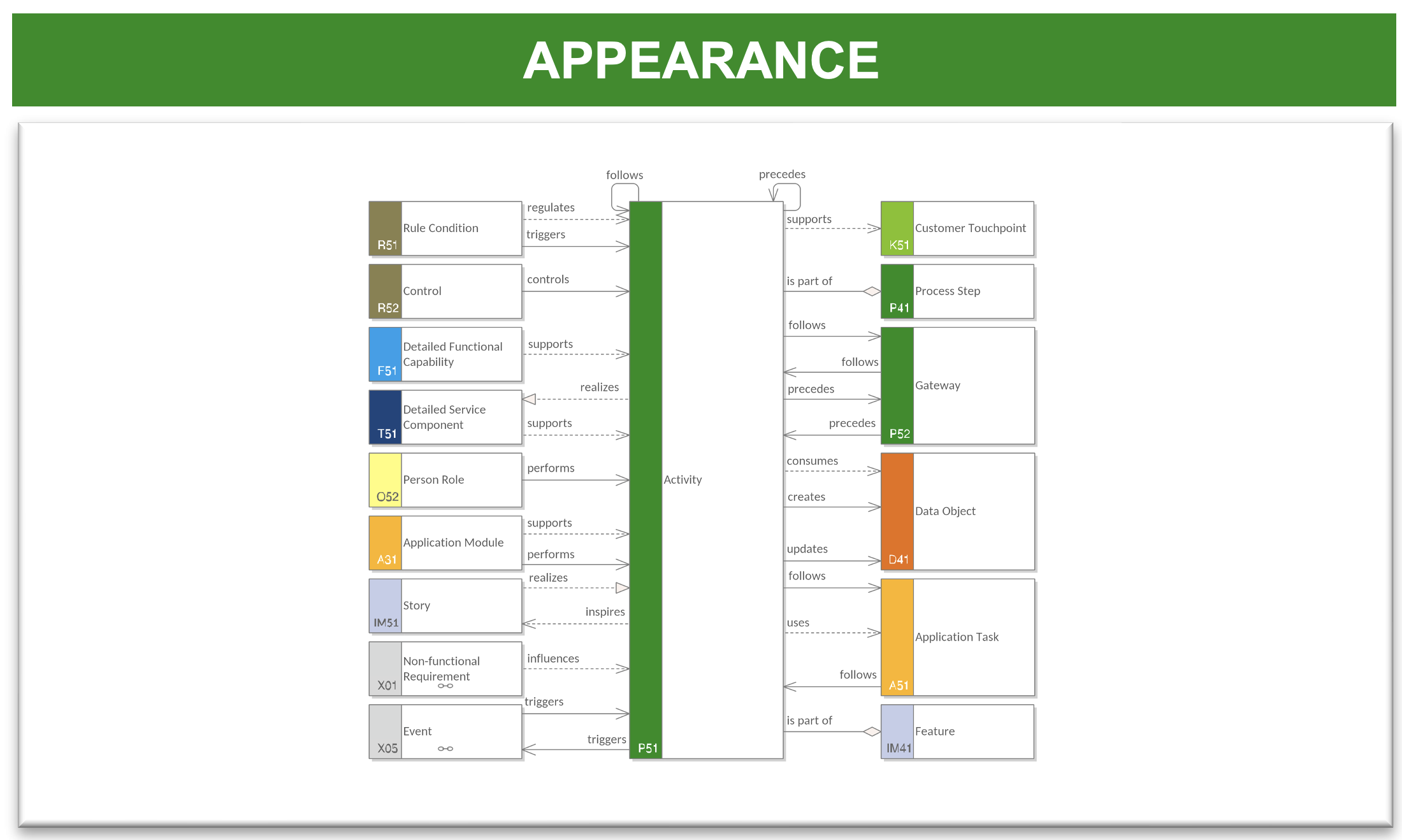

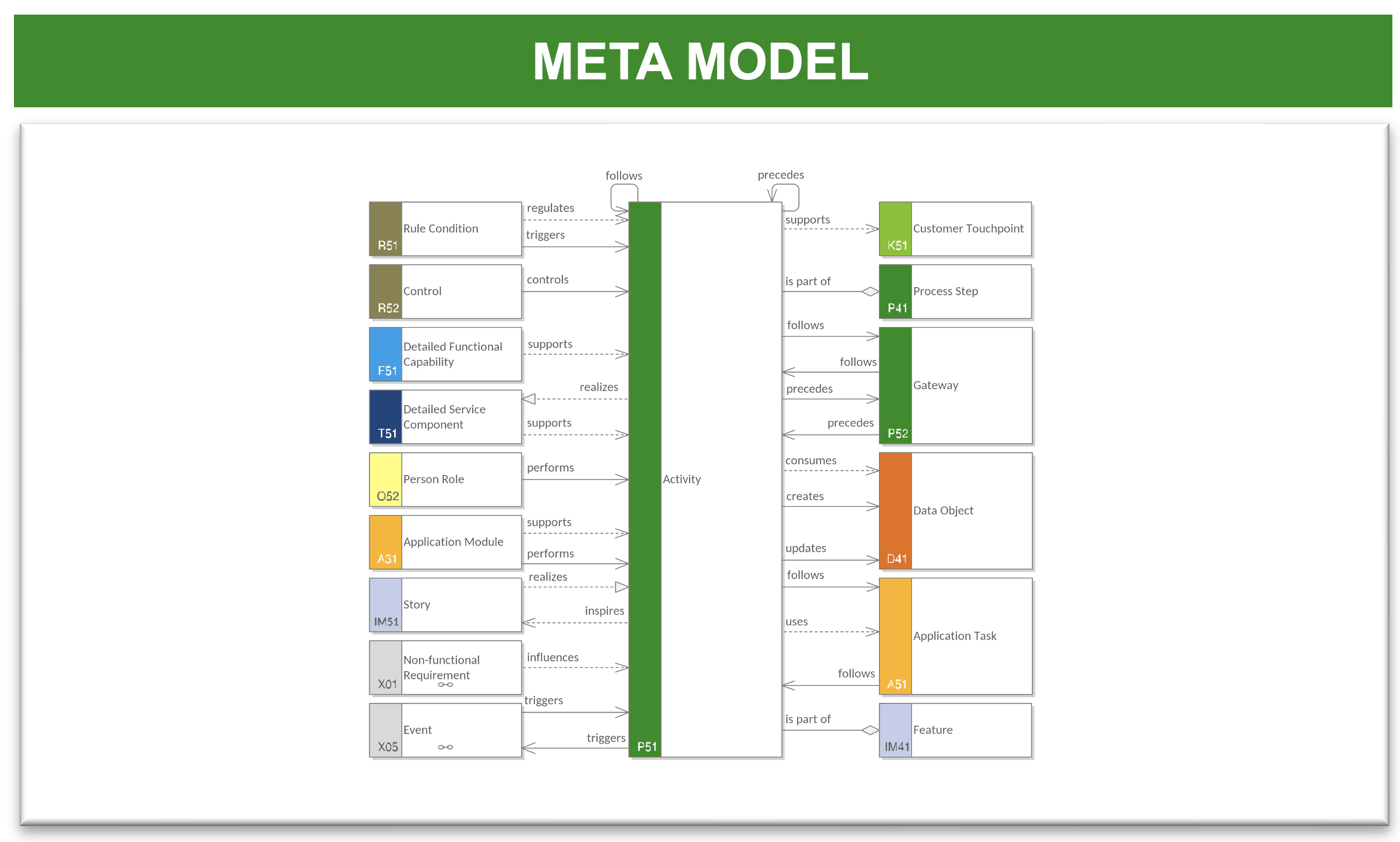

A visual description of other objects which a specific activity is related to. It contains usually a selection of surrounding objects and relations in order to support a specific analysis.
Purpose
The Process Activity Context Model is used in order to analyze relations to other objects. It is also used to create relations that are not included in other models (to avoid messy integration models).
Way of Working:
-
Place an activity in the middle of the model.
- Use the EA tool’s function to add the related objects of interest (or add them manually)
